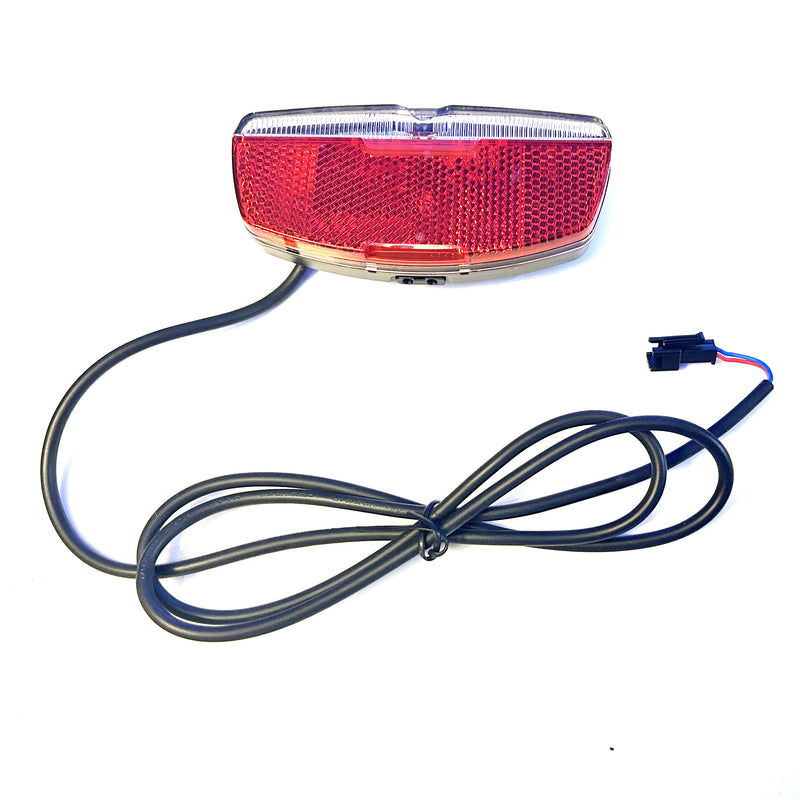

Tail Light (Wired) `BLAZE

BLAZE - Taillight

This bicycle rear tail light is made of high quality plastic material, easy to use, with excellent waterproof and dustproof performance.

The 80mm mounting size fits most of the e-bike rear racks on the market. To ensure smooth installation, measure the centre of the rear rack mounting holes carefully before purchase.

The working voltage range of this e-bike taillight is 12V-48V, which can be widely used in many kinds of e-bikes.

It has IP65 waterproof rating, which can effectively improve the safety of night riding. High-quality LED lamps provide 180-degree wide-angle illumination, ensuring that it stands out in dark environments.

The Blaze rear light can be connected with the light cable of the Bafang BBS controller.

It has no separate on/off-switch and is therefore controlled by the display light function of your motor or display unit.

- Voltage: 6V

- Visibly Distance: 500 m

- Dimensions: 120 x 40 x 17 mm

- Cable length: about 1 m

Before purchasing, make sure your Bafang BBS01, BBS02 or BBSHD motor provides the necessary light cable output.

We recommend connecting the taillight either directly to the controller light output via 2-pin SM plug. In most cases, the Bafang BBSHD controller already has the matching 2-pin JST socket.

The DPC-18 Bafang Display also has an integrated brightness sensor. This means, the rear light is automatically powered ON and OFF if you drive in a tunnel (for example).

Note: You may also require a light splitter cable if your controller only provides a single lighting plug and you want both a headlight and a taillight.
